manufacturer
Bell
configuration
Air medical
condition
Used
year
2013
time
2968
helicopter location
France
serial number
57154
registration number
F-HBEK
listing ID
HT6008
Description
EMS configured
4 Axis AP
CVFDR
Floats, IBF
Aircon- fixed parts
equipment
ADF Receiver: KR-87
ADAHRS : KSG-7200
ADIU Assy
AFCS: 4th Axis Autopilot

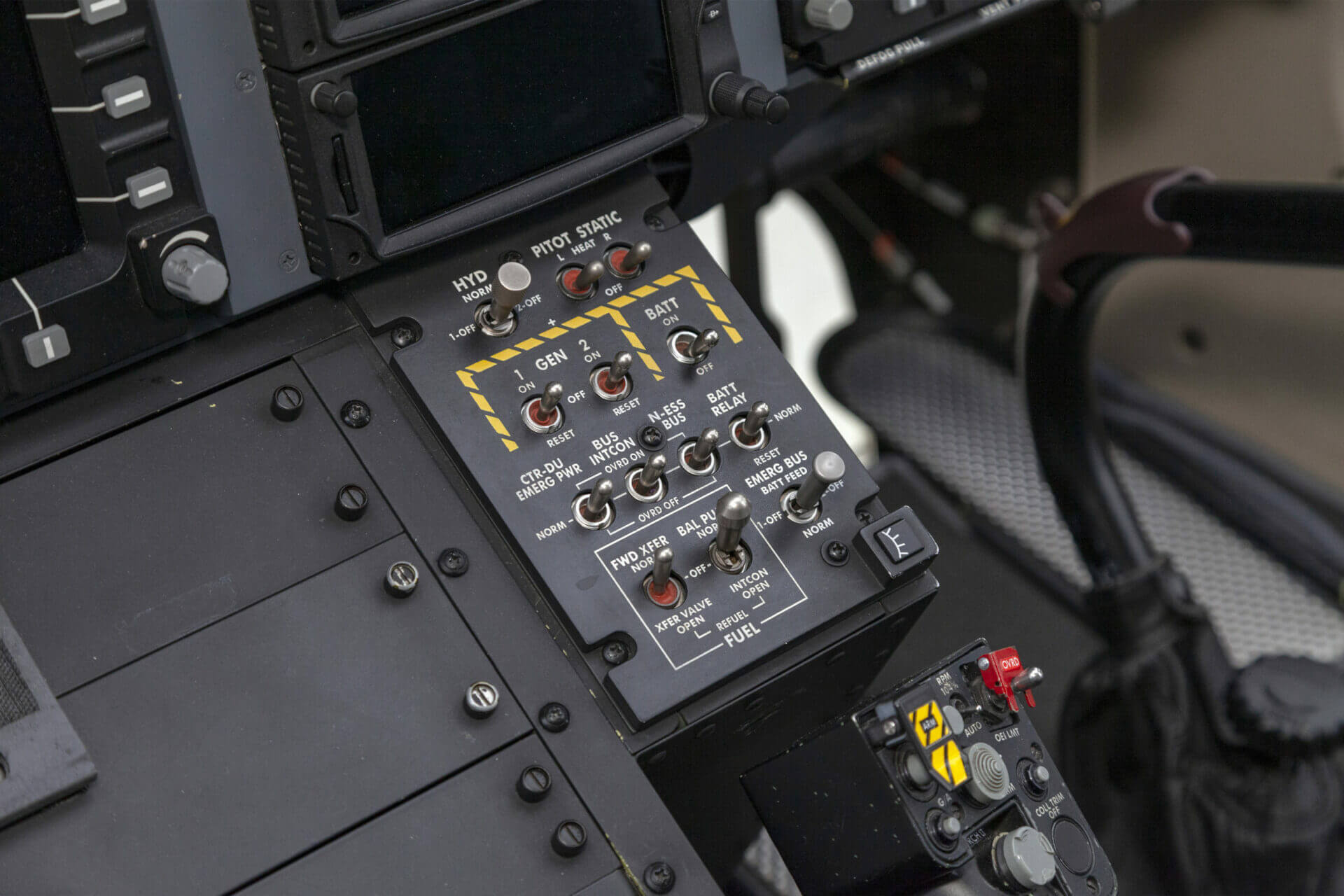

Avionics & Radio Master switches
Avionics compartment
Battery: 53AH, 24V
Garmin GTN 650/750 with HTAWS Enabled
Co-Pilot Pitot Static System: Electrically heated
CVFDR
Digital Audio System: incl. ACU6100 (Becker)
DME Transceiver: DME-4000
ELT fixed: C406-N HM
EMS kit: OPM 429-29300-501
FADEC
Engine Fuel Heater PW207D2 Engine
Flight Control Computer
Fuzz Burners for engines
HTAWS: GNS 530W
Marker Receiver NVG: KR 21 - Mod.1692
MFDU: 2x DU & 1x DU (NVG)
M-PC3 Unit (Microbus): NAV/GPS/COM 1 /2: GNS 750 /GNS 650
NVG Cockpit
Pilot Cyclic Stick Locking Device
Radar Altimeter Transceiver: KRA 405B
Single/Dual Pilot fitted
Standby Horizon: H221FAM
Starter/Generator: 2x 200A, 28VDC
TCAS: Avidyne TAS620
Transponder Mode S: GTX 330
Weather Radar: Primus 660
Wire Strike Protection system (FP)
Tail Gear box Fairing
OPTIONAL EQUIPMENT
Articulated Landing light
Engine Fire extinguishing
Enhanced Cockpit ventilation
Enhanced exterior painting
Flashing forward light
Flightcell DZMX
Height adjustable Pilot & co-Pilot seats
Helicom
Low Landing gear type (re-enforced - Xtube)
Map case in co-Pilot door
NVG Lighting, DU (Basic a/c & 3rd display)
Pilot Cyclic Stick Locking Device
Rear Clamshell doors with windows
Rotor Brake
Strobe light
Windshield Wiper system
Automatic Door Opener
Dual 200 Amp Starter Generator
Inlet Barrier System
Bleed Air Heater Equipment
Dual Controls
Rear Clamshell Door with Windows
Engine Compressor Wash Kit
MISSION EQUIPMENT
Ditching kit
Emergency float
Inflation Cylinder (x2)
WSPS Detachable Equipment
