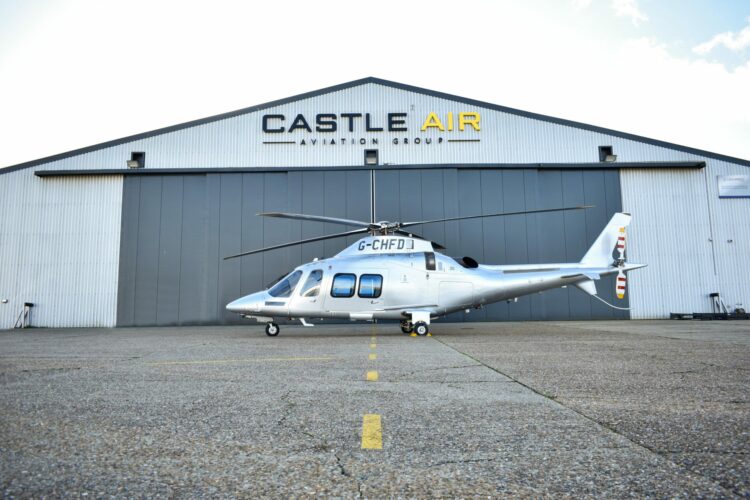

manufacturer
Leonardo
configuration
VIP
condition
Used
year
2012
time
982
helicopter location
United Kingdom
registration number
G-CHFD
listing ID
HT8748
Description
AS NEW CONDITION, 982 TT, TCAS, WEATHER RADAR, FLOAT PROVISIONS
avionics
Pilot flight/navigation EFIS (2 displays) with embedded FMS, HTAWS (Helicopter
Terrain Awareness and Warning System), slip indicator and Remote Bug Panel
(RBP)
Co-pilot flight/navigation EFIS (2 displays) with embedded FMS, HTAWS (Helicopter
Terrain Awareness and Warning System), slip indicator and Remote Bug Panel (RBP)
Reversionary Control Panel (RCP)
EFIS pilot/co-pilot navigation synchronization switch (FMS data)
Electronic Standby Instrument System (ESIS)
Second Radio Management System (RMS) RTU-4210 Collins
Second VHF/AM VHF-4000E Collins
VOR/ILS/ADF NAV-4000 Collins
DME DME-4000 Collins
Radio altimeter ALT-4000 Collins
Second Attitude Heading Reference System (AHRS)
Second Air Data Unit (ADU)
Pilot GPS/SBAS Chelton interfaced to EFIS/FMS
Co-pilot GPS/SBAS Chelton interfaced to EFIS/FMS
Digital Audio Control System (DACS) NAT additional cockpit panel
4-axis dual duplex digital AFCS with integrated Flight Director
Second magnetic compass indicator
ELT-C406-N HM Artex (with Navigation Interface Module embedded)
Dual controls
EVS (Enhanced Vision System) EVS-2300 Max-Viz
TCAS 7.1 Traffic Advisory System TAS-620 Avydine
8.4" cockpit central display
equipment
Active Noise Reduction (ANR) headsets (pilot
and co-pilot)
Baggage compartment lights
Cockpit & cabin crash-resistant seats, fore and aft
adjustable, with lap belts and headrest
Crew open door actuators
First aid kit
Fuel drain electrical valves
Internal structural provisions for utility
equipment
Portable fire extinguisher
Shoulder harness with inertial reels (pilot & copilot)
Tail boom strake
Air intake/exhaust covers
Ground tools kit (including tow
bar, lifting tool, wheel chocks)
Pitot tube covers
Rotorcraft Flight Manual (RFM)
and technical publications
interior
Air conditioning ECS (Environment Control System)
All seats crash-resistant covered with leather
3 fwd facing seats
2 aft facing captain seats on rails
Forward facing side armrests
4-point shoulder harness with inertial reels and safety belts for all
passenger seats
Soundproofing
Liners leather/leatherette covered
Acoustic screen around doors
Cabin double layer acrylic windows
Customized Corporate cabin finishing
Decoration trim with metal inserts
Intercommunication system for passengers
Headset BOSE ANR type (x5)
Reading lights, emergency lights, floor courtesy lights
Passenger hooks (x4)
Upper and lower air vents
Floor carpeting
Carpeting protection
Multipurpose holder (with space provision for fire extinguisher)
Right door pocket
Headset hooks (x2)
Cyclic and collective leather gators
Curtains in cockpit on upper windows
