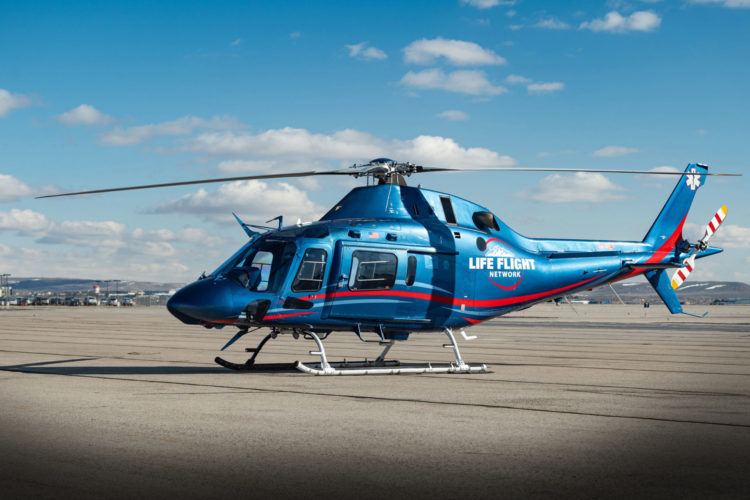

manufacturer
Leonardo
configuration
Air medical
condition
Used
year
2013
time
3371
helicopter location
United States
serial number
14802
registration number
N546LF
listing ID
HT6798
Description
HIGHLIGHTS
EMS configured
3 axis AutoPilot
Garmin 1000 flightdeck
USA based & FAA registered since new
Fleet of sisterships available for sale / lease
REMOVABLE MEDICAL EQUIPMENT NOT INCLUDED IN DELIVERABLES
avionics
VFR AVIONIC PACKAGE
Garmin G1 000H System
Display G1000H Panel LH and RH • Engine/Airframe 1/0 GEA71 H
Signal Conditioner GSC46
Integrated Avionics Unit GIA63H • AHRS GRS77H
AHRS Magnetometer GMU44 • Air Data Unit GDC74H
TAS GTSBOO
Transponder GTX33H
ADDITIONAL AVIONIC EQUIPMENT
AC power supply system (2 inverters)
NAT Digital ICS
AFCS 3-axis duplex SP-711 Honeywell
LIFE FLIGHT NETWORK SPECIFIC AVIONICS UPGRADE
1. New Instrument Panel
2. G1000H Synthetic Vision Cards
3. Radar Altimeter
4. XM Weather
5. GTX 330
6. TCAS (TAS compatible with G1000)
7. FM (TDFM 6158) with control heads in cockpit and cabin (LH Cabin)
8. SkyConnect with MMU in cockpit and cabin
a. MMUII in cockpit voice only-slant console
b. MMUII in cabin voice and text-LH Valance 9. EL T C406-2HM
equipment
STANDARD EQUIPMENT
27 Ah battery (in lieu of 22 Ah battery)
Active Noise Reduction (ANR) headsets (pilot and co-pilot) Baggage compartment lights
Crew open door actuators
First aid kit
Fuel drain electrical valves
Portable fire extinguisher
Quick disconnecting chip detectors
Shoulder harness with inertial reels (pilot and co-pilot)
Tail boom strake
ADDITIONAL EQUIPMENT
Baggage compartment extension (1.9 m)
Reinforced windshield (pilot and co-pilot)
Rotor brake
Sliders on cockpit doors windows
Windshield wipers (pilot and co-pilot) with wiper switch on cyclic grips
OTHER OPTIONAL EQUIPMENT
1. NVG Conversion Package
2. Super Night Scanner Searchlight
3. LED Loading Lights (2 per side)
4. LED Pulsed Landing Lights
a. Non Pulsed
b. Pulsed Together
c. Pulsed when TAS outputs Traffic alert to help alert presence in traffic.
5. LED Tail Rotor Lights (Tel Tail Lights)
6. LED Navigation Lights
7. LED Beacon LOX System (In Lieu of Gaseous Oxygen System)
a. Air outlet LH Valance
b. Lox Outlet 55PSI min LH and RH Valance
c. Lox Gauge -RH Valance -momentary read with power off/permanent read with power on
d. Lox Regulator LH Valance
9. 2nd LOX Bottle
10. Tanis Heater (M/R G/B, T/R G/B, Engine, and Hydraulic Tank)
11. Lead Acid Battery
12. Wire Strike Protection System
13. Tail Rotor Pedal Lockout
14. Tail Rotor Pedal Extension
15. Inlet Barrier Filter
16. Pulsed Chip Detectors
17. Air System
18. Suction System (Suction regulator LH Valance)
19. Medical Mount Propaq Zoll MD -Rear Roof LH Corner
20. Medical Mount Care Fusion L TV1200 -Installation on slide out center of litter base with reinforced base and footman loops to
secure.
21. Medical Mount Mini-Med Pump-Cabin LH side above window on brownline and not Parrot Pole.
22. Isolette Deck -with Mount for D Cylinder
23. IV Warmer
24. IV Hooks
25. Oxygen Bottle Mount (in Cabin) -Mount for "02" portable "D" -Cabin rear RH side behind fwd facing seat (in tunnel)
26. Locking Fuel Cap
27. Second Stretcher
28. Air Conditioner (Air Comm Corporation with dual evaporators)
29. Bear Paws with wear plate kit
30. Pouches
31. Life Flight Network Logo on Cockpit and Cabin Headrests
32. Retractable Landing Light 450W
33. Additional Brownline
a. Under fwd edge of bulkhead below fwd facing seats
b. Two rails in tunnel area
34. Shoreline Power
a. Connections for
i. Tannis Heater
ii. EMS Sockets
iii. Cabin Ground Socket (i.e. heater) 35. iPad Pocket/Map Pocket
interior
INTERIOR
Bleed air heater
Primer finished cabin walls
INTERIOR COMPLETION/MISSION EQUIPMENT
1. EMS Interior - Single/Dual Stretcher - Fixed Parts
Head liner with soundproofing and EMS provisions
Side liners LH and RH with EMS provisions
Aft EMS liners with rails
Bench panels with rear EMS provisions and stretcher rear lock mechanism
Stretcher platforms provision
Cargo net provision
Floor equipped with rails and drains
EMS electrical system
3rd ICS station in passengers cabin
Sliders on cockpit and cabin doors windows
2. EMS Interior - Single Stretcher Installation - Removable Parts
Medical cabinet with oxygen system provisions
Primary stretcher platform with front lock mechanism - Primary foldable stretcher (Qty 1)
Interior cargo net
Seats and stretcher covered with leatherette
Co-pilot seat that rotates to face aft
3. Aft facing sliding/rotating seat
Foldable fwd facing seats with headrests (Qty 2)
3-point shoulder harness with inertial reels and black colored safety belts for all passenger seats
Special rubber floor carpet
